Most canopy tent problems come down to one thing: bad setup.
Crooked legs, a sagging roof, one guy shaking the frame while the other reads the instructions upside down - it’s the kind of scene that turns heads for the wrong reasons.
If you’ve been searching for how to put up a canopy tent without turning it into a full-body workout, you’re in the right place. We’ll show you exactly how to set up your canopy tent with clear steps, real photos, a walkthrough video, and practical tips that cover what the instructions miss.
By the end, your tent will be solid, level, and ready for your big day - a packed trade show, an early morning market, or a backyard setup that just needs to hold up. No wrestling with stuck legs. No guessing what clicks where. No mid-event collapse while you're trying to keep things moving.
Step 1. Lay out all components on a flat, open area.
You’ll need two people for a smooth and safe setup - don’t attempt this solo. Start by removing the folded tent frame from the carrying case and setting it on the ground with the legs collapsed inward. Make sure you have the canopy top, ground stakes or weight bags, and any accessories nearby before moving on.
Pro Tip: Choose a level surface with enough clearance on all sides to fully expand the frame without obstruction. Avoid uneven or sloped terrain - it can make the canopy unstable once it’s raised.
Step 2: Begin Expanding the Tent Frame
With one person on each side, grip the top crossbars of the collapsed frame. Slowly take a few synchronized steps backward, allowing the frame to unfold partway like an accordion. Keep the motion steady and level - don’t yank or twist.
Pro Tip: Let the frame glide open naturally. Forcing it open can cause joints to bend, pinch fingers, or damage the metal.
When your setup’s on the edge - literally - you need a canopy that locks in fast, holds firm, and earns its place.
Step 3: Drape the Canopy Top Over the Frame
With the frame partially expanded, carefully lift the canopy top and position it over the frame. Align the center peak of the canopy fabric with the central connector at the top of the frame (often called the hub). Each person should hold a corner to prevent dragging and help lay it evenly.
Pro Tip: If your canopy is branded or printed, check orientation before securing. Fixing it after attachment is tedious and may require full removal.
Step 4: Attach Canopy Corners to Frame Poles
Wrap each reinforced corner of the canopy over the top of the corresponding frame leg. Secure it using the built-in Velcro strips. The fabric should sit snugly and evenly across all four corners with minimal slack.
Pro Tip: Take your time aligning each corner. If even one is off, it can cause the entire canopy to look skewed or sag later during expansion.
Step 5: Expand the Frame and Lock It in Place
Return to opposite sides of the tent. Grip the horizontal truss bars just beneath the canopy and lift slightly as you both walk backward. Continue until the frame is fully extended. This part of the canopy assembly is where things often go wrong, so take your time and make sure everything locks cleanly into place.
Next, go to each corner and push up on the slider mechanism (located where the truss meets the legs) until it clicks and locks into place.
Pro Tip: Push from the metal frame, not the fabric. The sliders are what hold the upper canopy structure rigid and secure.
Step 6: Raise the Telescoping Legs
With the upper frame locked into place, begin lifting the canopy off the ground. Start at one corner: place your foot firmly on the base plate and extend the inner leg upward until it locks into the first height setting. Repeat this on all four corners.
This initial lift gives you enough clearance to double-check the frame locks and tighten the canopy flaps in later steps.
Pro Tip: Raise each leg in stages around the frame rather than lifting one side all at once. This keeps the structure balanced and prevents unnecessary strain on the joints.
Step 7: Lock the Upper Frame Sliders
Go to each corner again and double-check that the slider - where the leg connects to the truss - is pushed up and fully locked. Use one hand to brace the leg and the other to press the slider upward until you hear or feel it click.
Pro Tip: If the slider doesn't lock smoothly, the frame may not be fully extended. Adjust the trusses outward first, then try again.
Step 8: Secure the Valance Flaps
Fasten the canopy’s valance flaps (the lower overhang) around the legs and crossbars using the attached Velcro. This tightens the fabric and gives the tent a clean, professional look while reducing wind drag.
Pro Tip: Tighten all flaps evenly. Uneven fastening can cause flapping in the wind and unnecessary wear on the fabric over time.
Step 9: Extend the Legs to Full Height
Now raise the canopy to its full standing height. Return to each leg and extend the inner telescoping section until it clicks into the final locking position. Use your foot on the base plate for stability as you lift.
Make sure all legs are fully extended and locked evenly so the canopy sits level and secure.
Pro Tip: Raise legs diagonally across from each other (e.g., front left, back right) to maintain stability as the tent rises. Avoid adjusting adjacent corners in a row.
Step 10: Secure the Tent with Stakes or Weight Bags
Now that the tent is fully assembled and standing tall, anchor it securely. Use ground stakes on soft surfaces by driving them through the pre-drilled holes in each base plate. On pavement or concrete, attach weight bags around each leg.
Pro Tip: Always anchor your canopy - even if there’s no wind. Sudden gusts can lift and flip unsecured tents, causing injury or damage.
Don’t Just Set Up Your Canopy - Stand Out

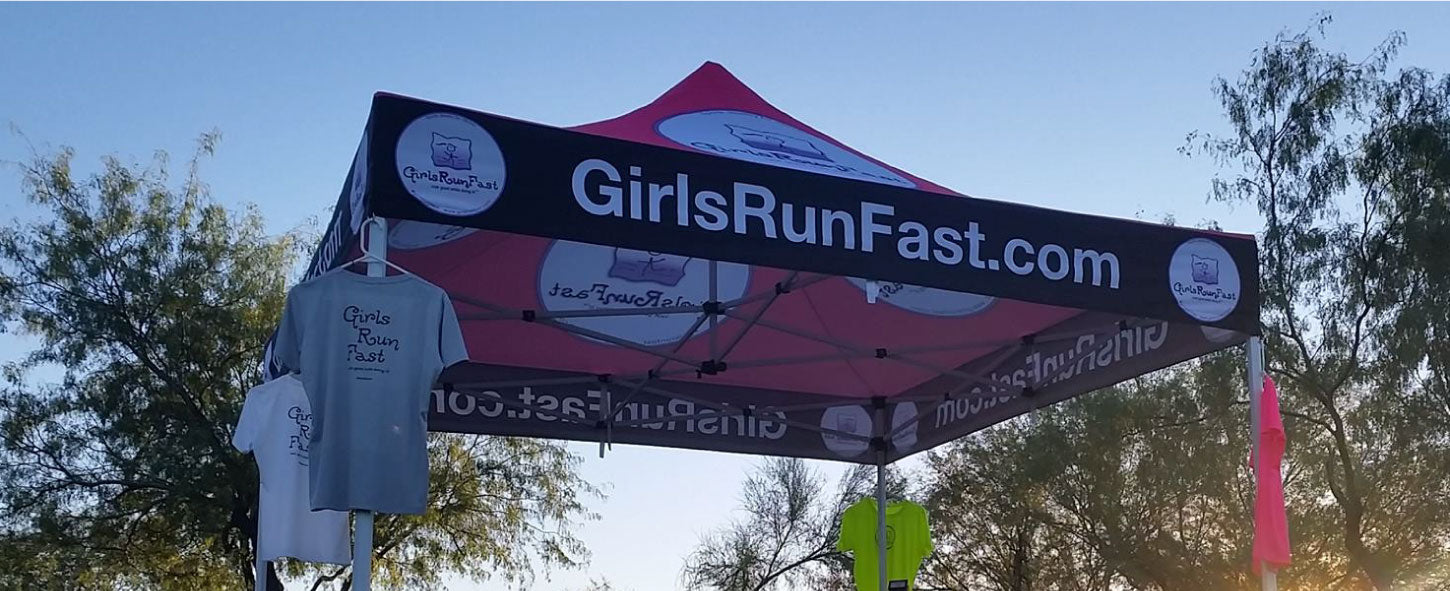

With a secure, branded setup like this, your canopy doesn’t just stand - it speaks.
